Videowall and Monitor Supports

Our partner Lund Halsey is a worlwide manufacturer for technical furniture solutions. However, is this all they do? No, it is not. Our experience has shown us that Control Room installations include further requirements. We are talking about videowall and monitor supports.

Why Additional Accessories?

Current Control Centers require of a vast range of solutions. In addition to consoles, there are several elements to be taken into account in the room configuration process. All these are conceived under a human centered criteria. That is, focusing on the operator performance and its improvement.

To reach this, it is crucial to deploy an accurate equipment integration. Monitor screens at worktop surface, connectivity panels, videowall screens, cable routing, etc. In this article we focus on two of them: videowall and monitor supports.

Videowall Screens

The installation of a videowall is a usual feature in the Command Centers design. Its deployment implies a wide range of elements to be taken into account in many aspects. Some refer to operator angle vision, to position issues, or size dimensions, among others.

At Lund Halsey, we count with the right solutions for any videowall configuration. Whether it is about big or small screen sizes. About floor standing, floor bolted, mobile, wall-mounted or ceiling-mounted positions. We provide you with the following solutions:

KUDOSTACK

  • Industry-standard monitor stack
  • Integrated cable management system
  • Fits any size screen, from 9” through to 105”
  • UMD, speaker and clock mounts
  • Kudostack speaker stand

VISIONLINE

  • Multiple possible configurations
  • Fits any size screen, from 12” through 120”
  • Floor standing, floor bolted, wall-mounted or ceiling-mounted
  • Modular design
  • Cost-effective solution

Monitor Supports

Current work environments are hardly understandable without monitor screens. In effect, it turns basic a proper display for any required custom configuration. This may include a single monitor row, dual monitor row, triple row or even quadruple and beyond.

At Lund Halsey, we are aware of the possible needs for your business. Therefore, we provied our customer with a vast Product Brochure for monitor supports at work surface.

SINGLE MONITOR

  • Designed for screens up to 30” / 13kg
  • Fits screens with VESA mounting patterns 75x75mm and 100x100mm
  • Concealed cable routing with access cut into console
  • Maximum extension is 465mm
  • Lifting capacity: 340mm
  • Full motion adjustability

DUAL MONITOR ARM

  • Designed for screens up to 24” / 21kg
  • Fits screens with VESA mounting patterns 75x75mm and 100x100mm
  • Concealed cable routing with access cut into console
  • Maximum extension is 650mm
  • Lifting capacity: 515mm

POLE ARM

  • Designed for screens up to 24” / 21kg
  • Fits screens with VESA mounting patterns 75x75mm and 100x100mm
  • Concealed cable routing with access cut into console
  • Maximum extension is 750mm
  • Lifting capacity: 700mm
  • Up to 4 screens mounting
  • Full motion adjustability

TOTEMS

  • Designed for screens up to 24” / 21kg
  • Designed for screens up to 24” / 21kg
  • Fits screens with VESA mounting patterns 75x75mm and 100x100mm
  • Concealed cable routing with access cut into console
  • Maximum extension is 390mm
  • Lifting capacity: 700mm

Solutions Provider by Ergovisual

One of Ergovisual biggest values lies on its capacity to provide the right solution to the exact need you have. In effect, we consider ourselves as a solutions provider, focused on Datacenter & Control Room installations.

Who We Are

Our team has been involved for almost 20 years in international projects for Control Rooms & Datacenters. Therefore, we represent leading companies, vertical oriented, to offer from single product to a comple turnkey solution.

We are the Official Sales Agents of manufacturers or service company. This meaning you can benefit from direct support at any stage of the project and for the entire life of the product without intermediaries. We are your solutions provider.

One of the crucial aspects of this, lies on our partners network. For us it is basic to work with the best partners in their markets. In effect, we commit to the principle of offering the best solution to our clients. In this sense we are happy to work with the following companies.

LUND HALSEY

The UK manufacturer is a long time established company in the Control Room market. Lund Halsey is a global reference in a wide range of vertical markets for the provision of Control Room Technical Furniture.

Its manufacture process locates in its UK headquarters. Indeed its whole Brochure is certified for a 24/7 intense activity thanks to its ergonomic yet stylish designs. As example of this, Lund Halsey consoles count with the outstanding height adjustable feature.

WEISS DOPPELBODENSYSTEME

Weiss is our partner for Datacenter solutions. Born as a raised floor systems supplier, Weiss has specialised in the provision of Datacenter cooling solutions.

Its origins as raised floor supplier, enabled the development of the unique In-Floor Cooling system. By placing Active Panel units both at under raised floor or at roof top of hot/cold aisle you can reach a huge space optimization.

OTHERS

We are the Official Sales Agent for the above companies. Nevertheless, we have a wide network of top partners in complimentary markets.

Likewise, we can provide you with the highest quality screens in the market made by the most recognized manufacturer globally.

In addition to this, the design and configuration of your Control Room installation may require of a previous ergonomic study. For this, at Ergovisual we also provide you with access to ergonomic studios which will help you define the ergonomic principles of your Control Center.

Not only this, but also many others solutions can be deployed to meet our customer request. Always by only considering high-quality solutions. We are a solutions provider to our clients.

Markets

  • Security & Transport

Our Product Brochure counts with a wide range of console solutions. It is the Kontrol Command console range which meets the requirements of Security environments, such as equipment integration and a robust product.

  • Broadcast

Lund Halsey first work was a dedicated console for a Broadcast studio back in 18983. Still today, the UK company is a global reference in the industry. Currently, the e-Type II console positions as our specific Broadcast console for your Edit Room and Broadcast Control Rooms.

  • Air Traffic Control

ATM market is undoubtly a singular industry with its specific requirements. Especially regarding equipment devices, the Kontrol Command range integrates all required displays. High-quality furniture for the highest operator performance at mission critical environments.

  • Process Control

Oil & Gas installations, Energy, Renewables, Chemicals, etc. All these industries require of surveillance and monitoring equipment. Therefore, counting with 24/7 solutions becomes crucial for your company safety.

  • Datacenter

Such a growing industry is evolving day after day. Same did Weiss with the development of the unique Active Panel units for the Datacenter cooling. Optimize your Datacenter footprint and dedicate rack cabinets to only servers hosting.

Technical Furniture Manufacture Process

At Ergovisual, we are Official Sales Agents for Lund Halsey. We are glad to work with one of the world leading references in the Control Room market. There exist many reasons for this, one being Lund Halsey technical furniture manufacture process.

After more than 35 years operating worldwide, our UK partner is still innovating its 24/7 Control Room Catalogue. To do this, the company relies on its broad expertise in the manufacture process of technical furniture. Based in the UK, Lund Halsey installation site corresponds with company high-quality standards.

Made in the UK

Lund Halsey is found in Aylesbury, in the nearby of UK capital, London. Ever since its foundation, the company has been established in the country. At the same time that the company expanded its presence worldwide, the installation site has improved its performance accordingly to the business needs.

In effect, it is at Lund Halsey installations where the company keeps the whole production under control. This includes the use of best manufacturing materials, ensuring a distinguishing solution for your technical furniture. In addition to this, Lund Halsey 24/7 Catalogue certification bases on the conception of an ergonomic yet stylish design for all our consoles ranges.

Complete Manufacture Process

Besides this, Lund Halsey counts with an outstanding human team. Skilled and experienced staff are in charge of the different business units. Together with this, state-of-the-art infrastructures are deployed for the technical furniture manufacture process.

Our partner counts with remarkable resources for the delivery of high-quality solutions. Not only as far as equipment concerns, but also thanks to our professional team expertise and skills. Thus reaching the highest exploitation of our technologic, industrial and human resources.

After the receipt of customer orders, the manufacturing process follows clear guidelines to accomplish the preset terms. This regarding supplying deadlines, manufacturing and delivery terms. In effect, we conduct a complete control for each stage in order to provide reliable solutions to our customer.

Team Work

The succesful completion of the manufacture process is done together with the support of the rest of business units. Thus, team work results an indispensable part for the precise accomplishment of our customer request. Lund Halsey staff works as a team, from our Commercial position to responsibles at factory. We all work as one, with a common aim to understand and deliver our client needs.

Constant communication and coordination between all parts is a crucial step for the right alignement within Lund Halsey team. Eventually delivering a distinguishing solution for our customer worldwide.

Control Room Case Studies

Throughout our long time presence in the Control Room market, we proudly had the opportunity to work with partners worldwide. Many of them coming from diverse sectors. Ranging from Industry, Security, ATM to Broadcast market, customers trust Ergovisual and Lund Halsey high-quality solutions.

For this reason, we are happy to present some of our Control Room Case Studies with the configuration of Lund Halsey Control Room consoles.

Broadcast Case Studies

For the Broadcast industry, Lund Halsey provides you with specific Broadcast consoles. On the one hand, its premium version, the e-Type II console. On the other hand, our recent launching, the X-Type version.

Case Study: Dorna Sports

Dorna Sports is the company responsible for the broadcasting of the Road Racing World Championship Grand Prix, the biggest motorcycling competition.

Our partner sought the configuration of their new Edit Room. Composed of different e-Type II configurations, each equipped with its specific equipment deveices.

Since the very first moment, common points of interests were achieved. By understanding the exact need of their project and supported by an efficient and effective project management.

As part of the process, Dorna representatives were invited to visit Lund Halsey factory. Then, our partner had the opportunity to review their next console solutions as well as test its high-quality standards.

Thereafter, we were glad to deliver them with a fast and accurate installation and transportation process. Eventually, building our 24/7 technical furniture at site, as per image below.

Security Case Studies

Our Kontrol Command console range specializes in many sectors. One of them is the Security industry. Given its robust and modular design, the Kontrol Command serie has become a distinguishing solution for Control and Command Centers.

Case Study: WMCA Birmingham

The West Midlands Combined Authority had already trusted in Lund Halsey furntiure solutions. Therefore, when it came to the upgrade of their Control Room sites, no doubts arose after their experiencie with Lund Halsey.

Given their project request, the Kontrol Command range was chosen as the right solutions. Its design and configuration enabled an easy equipment integration, both in internal storing space and at work surface.

Additionally, the console was provisted of our stylish Kontrol Touch panel at work surface. Also, the Room counts with our Kudostack supports for large size screens. Thus, as per customer feedback, giving a modern, fresh and hugely impressive feel.

Energy & Process Control Case Study

Our technical furniture applies for a wide range of industries. Therefore, the Kontrol Command line results a distinguishing solution for Process Control and Energy installations.

Case Study: Equinor Norway

Jointly with our partner GCCD in Norway, we delivered this state of the art KVM-matrix based Control Room to Equinor.

Equinor specializes as supplier for Energy infrastructure. With a long time experience in the Oil&Gas industry, it is now that the company extends its activity on the renewable energies field.

As part of this path, at Lund Halsey we were happy to cooperate with Equinor for the creation of their Control Room site. By integrating our Kontrol Command console range with specific equipment requirements, the final result was an outstanding working environment.

At Ergovisual we have had the pleasure to accompain our partners in their requests. For this, we are happy to give our full support by giving priority to the understanding of your exact needs. And, after this, providing with a top quality service and solutions.

Have you seen some of our recent Control Room Case Studies? Do you have a project in hands? Contact us and we will provide you with a professional service.

Smart Cities Control Room Furniture

Urban spaces are increasingly acquiring major roles in the development of contemporary societies. In the same way, the concept of Smart City has given name to many of the challenges which shape this new industry. As part of this process, at Ergovisual we are specialists in the development of Smart Cities Control Room Furniture.

Smart City Market

Smart City market spreads to a wide range of sectors. This concerns many aspects of modern life: smart management, connectivity, mobility, home intelligence, industry, etc. In effect, comprising the growing demand and fast innovation for all kind of technologies.

In order to make all these elements work, it often requires the provision of Control and Surveillance tools in many aspects. In effect, including the provision of Control Room Technical Furniture for the configuration of Control and Command Centers.

Specialized Furniture for Smart City Installations

Smart City solutions will demand of reliable monitoring solutions. This applies not only in terms of software and abstract solutions, but also regarding infrastructure matters.

High density urban spaces may require of Control Center sites by which carry out a complete supervision of the activity. As an example, traffic planning will require of sophisticated software programmes, but also of high-quality infrastructure to reach its full potential.

For these reasons, the provision of specialized technical furniture become a key issue for the highest equipment effectiveness at work station.

Information Processing and Fast Decision-Making Processes

The need of control and surveillance equipment devices for the connectivity, mobility or smart management of urban cities require of high-quality solutions. Therefore, our partner, the UK manufacturer Lund Halsey, provides you with certified 24/7 solutions for your Smart City Control Center.

Lund Halsey console range counts with a wide range of distinguishing settings. Its independent module bays structure improves human-machine interaction between key equipment devices and operator. Further to this, different size screens may fit into rear work surface thanks to a wide range of support options, from single monitor arms to dual height electronically totems. Likewise, it exists the possibility to create custom configurations.

Work surface is made of high-quality materials, complying with international ergonomic dimension standards. In effect, the operator benefits from free working space area, thus boosting its performance. At the same time, the rest of equipment devices are ergonomically deployed through the console structure.

Worldwide Customers and all kind Vertical Markets

Our partner Lund Halsey has been working worldwide for more than 35 years, becoming a world reference for 24/7 technical furniture solutions. Indeed, customer trust has come from different industry markets, ranging from Security, Broadcast, Air Traffic Management to Energy and Utilities.

It is now, that Lund Halsey establishes as a gobal reference for Smart Cities Control Room Furniture.

High-Quality Materials for Technical Furniture

Critical environments such as Control and Command Centers require of specific solutions to perform in high pressure scenarios. Due to this, world leading manufacturer Lund Halsey only considers high-quality material for Technical Furniture.

By deploying resistant, durable and contemporary materials, Lund Halsey provides our customers with 24/7 certified solutions. Therefore, becoming the right partner for the configuration of your technical furniture equipment. Know more about it as follows.

24/7 Technical Furniture Materials

Our console range is made of two main materials. On the one hand, a robust and stable structure made of steel. On the other hand, an ergonomic work surface made in compact laminate.

Steel Modular Bays

The console design conceives a series of standard bays to form consoles as required according to the number of operators and control equipment. Steel material guarantees an outstanding robustness for all kind of equipment integration, as well as ensuring high safety conditions for the operator performance.

Such steel structure ensures a great furniture stability for the whole console length. There will be no risk of structure folding at the same time you may locate equipment devices both inside console and at worktop. Internal storing spaces and compartments (this including rack frames, shelves, connectivity boxes or cable routing accesses) are all made of steel material.

The deployment of high-quality materials technical furniture enables us to reach high standard solutions.

Compact Laminate Work Surface

HPL compact laminate has become a distinguishing feature for high-quality materials technical furniture. For this, operator work surface will have a 12mm thick surface, as per standard EN13896.

Additionally, compact laminate offers you with esteemed tributs, such as the possibility of lighting against the operator. Also, given its non porous property, no liquid leakage will damage the surface. Further, HPL compact laminate is an abrasive material, thus providing a high-resistance cappability for the console.

Aluminium Frames

Console frames will be fabricated from 1,6mm and 2mm together with contrasting aluminium components. Thus improving console aesthetics as well as protecting furniture edges.

Console Finishes

Work surface edges will be contoured and the corners will carry a radius. Console frames will be finished with a mild steel powder coated in standard RAL 7012.

A wide range of color finishes will be available. By default, console side panels, doors & work surface are manufactured in light & dark grey. As option, customer can select additional color finishes according to their preferred configuration.

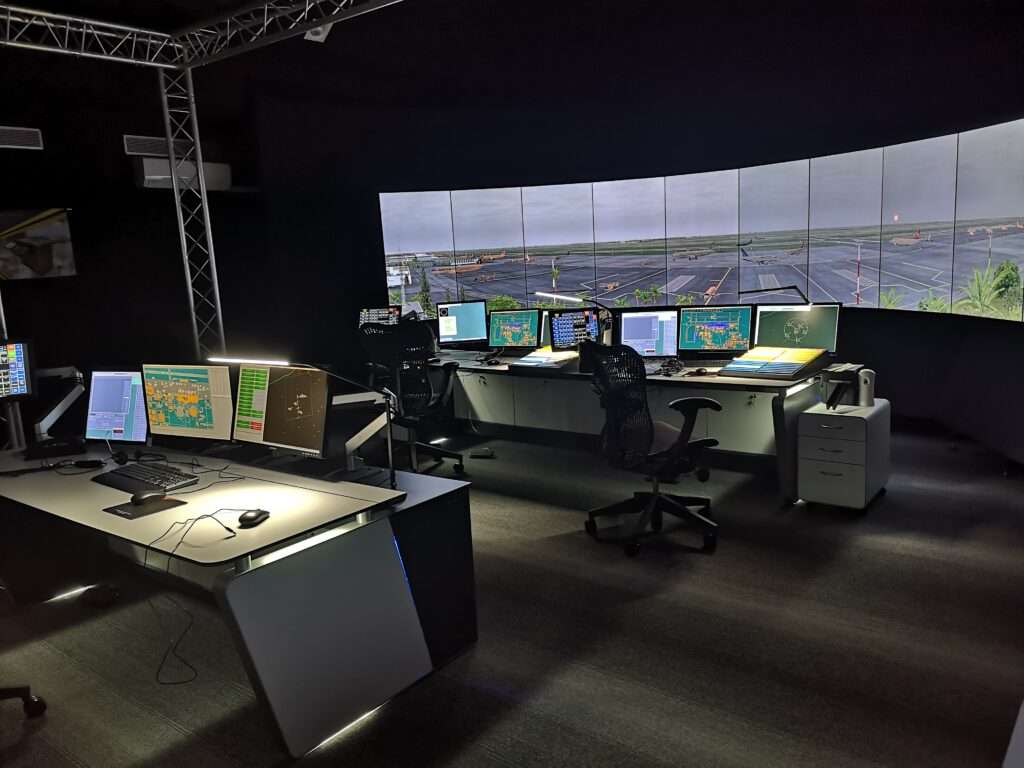

24/7 Chairs for Control and Command Centers

Critical environments such as Control Room installations require of highest technology. At Lund Halsey, this applies not only for technical furniture, but also for our chairs equipment. We are specialists in 24/7 Chairs for Control and Command Centers.

Our Product Brochure provides you with a wide range of solutions. Thus helping our customer to find the appropriate solution for its enquiry.

Why 24/7 Chairs?

As work evolves, and we become more active, shifting from individual to collaborative work in an instant, we need tools designed to be as agile as our work style.

Support for seated movement starts with a flexible, yet supportive chair that allows your body to move freely and naturally.

High-Quality features

Why are 24/7 chairs truly needed? There exist many arguments which gives answer to this question. Here are some.

Full height adjustable

Configurate your preferred height according to your body charactersitics.

Back recline effect

Our high-intese use chairs is equipped with a counter-balance mechanism providing perfect recline resistance for its user.

Self-locking recline mechanism

Set and block your preferred tension and recline position according to your body weight while keeping full support throughout movement.

Pivoting backrest

Backrest automatically moves with the user offering perfect lumbar comfort in all positions.

Contoured cushions

Reduction of pressure points by close sculpted design following body’s shape.

Headrest equipment

Cradle your head and neck during recline thanks to its dynamic support.

Meeting and Crisis Desks for Control Rooms

Ergovisual has a wide range of solutions in technical furniture. Its Catalogue goes further to console technical furniture for Control Rooms. Within its Brochure, we offer you Corporate, Meeting and Crisis Desks solutions.

This product range maintains the quality and properties of Lund Halsey solutions. Likewise, these are conceived for its installation in critical environments with decision-making.

Tables for Meeting and Conference Rooms

The product line includes standard solutions as well as solutions with customized designs as required. The product design maintains Lund Halsey high-quality standards. Manufacturing process is carried out in the UK production facility.

Lund Halsey Meeting and Crisis Desks series combines in harmony different elements to match the interior design criterias for a sophisticated and modern space ready to be in use for long periods.

Cutting-Edge Materials & Ergonomic Features

Cutting-edge materials give shape to our ergonomic desks. Built in reinforced metal structure covered with 12mm compact laminate surface. Whole desk will remain united thanks to a complete metal structure.

Its design maintains its functional vocation combining a modern conception with ergonomic features. Therefore, desk corners will have contoured edge with a radius. This in order to minimize the blood’s pressures of the operators.

Work surface height will be 735mm as well as ensuring a 5500mm area for leg space, both complying with EN13986 standards.

Modular Design

Based on a series of modular components Lund Halsey Meeting and Crisis Desks serie is ready to improve the collaboration tasks and interaction between the users. Thanks to a wide range of accessories like integrated monitors, collaboration matrix, custom dedicated power & Data bases.

Each desk will count with removable panels, in compact laminates 12mm, to get access to central area. Central area will allow the hosting of active equipment, cable entries from raised floor, computer integration, KVM units allocation and other electronic devices.

In addition, a minimum interior space of 400mm to allocate electronic devices. Also, the desk will be equipped with cable management routes internally. As option, customer may allocate rack mount inserts inside desk central area.

State-of-the-art Design

Our desks range distinguishes not only for its functional and modular features, but also for an aesthetically attractive design. Customer may select its preferred desks finishes from our wide catalogue. Customise your Conference and Meeting Room by including your company logo in a low voltage LED strip lighting.

Clients globally trust the quality and reliability of this product line for their facilities. Trust our Lund Halsey partner solutions and discover why.

All about Lund Halsey Technical Furniture Accessories

Lund Halsey solutions offer our customers with a large amount of applicabilities. Among them, the allocation of technical furniture accessories in order to deliver our customer with the desired console configuration.

Our Control Room Consoles cover a wide range of markets. In effect, Lund Halsey technical furniture contains all features needed for the deployment of additional accessories into its infrastructure.

Accessories

Lund Halsey consoles comply with current requirements for the conception of Control Room installations. Thus, helping operator to improve its performance at workplace, as well as reaching highest comfort.

PDU Units

Console structure is conceived in an integral way. We are aware of the need to place connection sockets near equipment devices.

Therefore, Lund Halsey furniture contains specific compartments for PDU units storage. Located within console internal space right below monitor screens it also provides an easy connection for internal equipment devices.

Monitor Arms

Monitor arms are a key element within Control Room environments. In effect, screens become crucial for information processing and fast reaction timings. Lund Halsey console range considers the need of its integration. All our monitor arms will fit VESA standards for monitor screens.

Specific slots are placed on the top of console structure. Those help to integrate all kind and size of monitor screens. Likewise, it allows customer to create their own configuration according to its specific requirement.

Further to this, customer can be provided with the most appropriate arm version. In option, Kontrol Monitor Arm grants you with both great stability and flexibility. As option as well, e-Type Monitor Arm is specifically conceived for Broadcast installations.

Totems and Plasma Stands

Large size screens can also accomodate at Lund Halsey consoles. Also specific screens configurations will fit into your console design. For this, we count with our Electronically Height Adjustable Totem.

Such totem integrates within main console structure. It ensures highest resistance and security for the deployment of large size screens and custom configurations. In addition, its height adjustable feature will enable you to adapt screens position according to your preferred configuration.

Mostly for Meeting and Conference Rooms, single screens can also be deployed. When discussing, showing presentations, or sharing information, our Kudo Stack Stand will host your large size screens.

Kontrol Touch

Kontrol Touch becomes one of distinctive Lund Halsey accessories. Our connection box can perfectly fit on work surface, close to working area.

Customer can choose to be provided with open surface option or with rotating feature. By flashing your hand over Kontrol Touch, this will open and provide operator with its sockets connection.

Interchangeable Pods

Work surface of the console may need to include customised equipment devices. Lund Halsey technical furniture design takes all this into account.

Your console may need to allocate telephone devices, Broadcast mixers, ATC radars, among many others. Therefore, the console will be supplied with interchangeable metal pods to accomodate those items. In case of future modifications or changes, customer will be able to move it with no major difficulties.

In conclusion, Lund Halsey technical furniture offers you with plenty of accessories solutions. Thus, providing you with great modularity as well as custom configurations according to your specific requirements.

All this, granted with highest ergonomic standards and the ease to improve operator performance at workplace.

Height Adjustable Control Room Consoles

Ergonomic requirements for the creation of Control and Command Centers evolve day after day. Our partner and specialised manufacturer Lund Halsey is aware of it. Therefore, its whole 24/7 Console range count with Height Adjustable option.

Indeed, Sit/Stand feature easies operator performance at workplace. There exist several advantages accompanied by such resource.

Benefits of Working with Sit/Stand feature

Contrary to some beliefs, humand body is conceived to be in motion, instead of being immobile. Hence, many advantages arise from height adjustable solution. Let’s see them.

  • Back pain reduction: Work environments such as offices, boost the risk of suffering back pains. For this reason, the possibility to work both in Sit/Stand position reduces back and neck suffering. In this way speaks the ‘Centers for Disease Control and Prevention’ (CDC).
  • Improvement of your body and emotional wellbeing: HA consoles ease operator stress and fatigue levels. As a result, operator will have higher energetic levels.
  • Productivity Increase: Against arguments claiming a lower productivity given its lack of habits, you may reach higher efficiency rates. In fact, The higher comfort at workplace, the higher productivity.
  • Cardiovascular risks reduction: Working in a fixed position exponentially raises cardiovascular accidents. Meanwhile our Sit/Stand adjustment considerably reduces its effects.
  • Larger life expectancy: According to above stated, work in motion improves your general health condition. Specifically by boosting a larger life expectancy.
  • Lastly, in a more cautious way, standing position at workplace benefits your weight loss given higher calorie burning levels.

Height Adjustable feature at Lund Halsey Consoles

Lund Halsey entire 24/7 Console brochure is supplied with our Sit/Stand tool. Such solution consists of an easy control setting for the height fixing. Likewise, it complies with Control and Command Centers ergonomic standards, already obligatory in some countries.

Console design counts with lifting columns: 2 of them at side panels, 1 in each lateral; together with 1 lifting column en in the middle of structure. Additionally, console includes energy chains for the cable routing in case of working in Stand position.

Effectively, our robust and modular design integrates with lifting columns in order to provide highest stability at work surface.

As per ISO 11064 international norm for Control Rooms, console height will be nominally 735mm. Meanwhile for standing position you may reach 1200mm height, or 1250mm for Visionline range.

Height adjustable control system can be easily set. A button at console corner lets you define the exact height which the operator will mark.

Kontrol Command

e-Type II

Visionline
