The current pandemic has originated many challenges for all businesses. This has not only affected companies financial status, but also in many other aspects of their daily activity. In effect, our daily office routines may have suffered pretty much changes. Due to this, Weiss Doppelbodensysteme has created the new Safe Panel, in order to keep your office team safe by cleaning air.
Stay healthy with Safe Panel
Our new Safe Panel dedicates to the cleaning of your indoor office air. The elimination of all kind virus, as well as dust, polen and others, done by an H13 filter enables you to work safely at office.
Scientists recommend this in order to reduce the possible viral load by 90% and thereby significantly minimizing the risk of infection.
In addition to viruses of all kinds, an H13 filter is, of course, able to filter dust, polen and all kind of particles. In effect, also contributing to a signifcantly better indoor climate.
Functionment

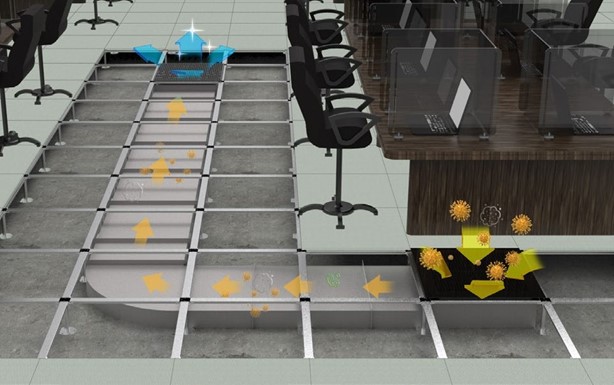

By means of powerful fans which actively suck the air into the raised floor, this air is led through an air conduct over a passive plate with an H13 virus filter.
A fan can move up to 4.000m3 of air per hour. A passive plate can filter up to 700m3 of air. This means you can operate several passive panels with one active panel in a central location.
The active and passive safety panel, which operates particularly quietly, can be installed in any raised with a 200mm finished raised floor height.
Since an air conduct is used there is no need of additional measures to upgrade the floor.
Values & Figures
Panel
- Dimensions: 600mm x 600mm
- Panel thickness: 250mm, without covering
- Top side: PVC, HPL, rubber, carpet, parquet
- Underside: EC-fan
- Weight: 26kg
- Plate material: steel, powder-coated
- Building material class: A1
- Free area: 39%
- Earth leakage resistance: <10 Ohm (depending on the surface)
Load Values
- Point Load: 3 kN
- Breaking Load: > 6 kN
- Construction heights: 200mm – 2000mm
Power
- Voltage: 230V
- Max. Power Consumption: 140 W / 400 W XL version
- Air flow rate: Active plate 4.000m3 / Passive plate 700m3
